Solid Mount Setup

This guide walks you through how to assemble, install, adjust, and inspect the Beta Bloc Solid Mount. The Solid Mount is designed to turn your Beta Bloc into a stable, removable home training setup when attached to an appropriate backing board.

Before installing, read through this guide completely and confirm that your backing board, mounting location, hardware, and training area are appropriate for your setup. Wall construction varies, and the user is responsible for choosing a secure mounting location and properly installing the Solid Mount before use.

The Solid Mount is for climbing training only. It is not climbing protection, fall protection, personal protective equipment, or life-safety equipment.

Choosing a Backing Board

Do not install the Beta Bloc Solid Mount directly into drywall. Drywall is not an appropriate mounting surface for the Solid Mount and should not be used as the only material supporting the mount.

The Solid Mount must be attached to a secure backing board that is properly installed to structural framing or another appropriate load-bearing structure. Wall construction varies, and it is the user’s responsibility to choose a safe mounting location, appropriate backing board, and proper installation method.

A common setup is a solid wood backing board, such as a 2x6 or thicker board, securely fastened into wall studs using appropriate structural fasteners. (NOT included) The backing board should be flat, solid, and installed so it does not flex, shift, or pull away from the wall during training.

A properly installed backing board helps spread the load across a larger surface area and gives the Solid Mount a stronger, more stable base for training. Before installing the Solid Mount, confirm that the backing board is secure, does not flex, and is appropriate for the type of training you plan to do.

Do not use the Solid Mount if the backing board, wall, fasteners, or mounting surface feels loose, weak, damaged, or unstable.

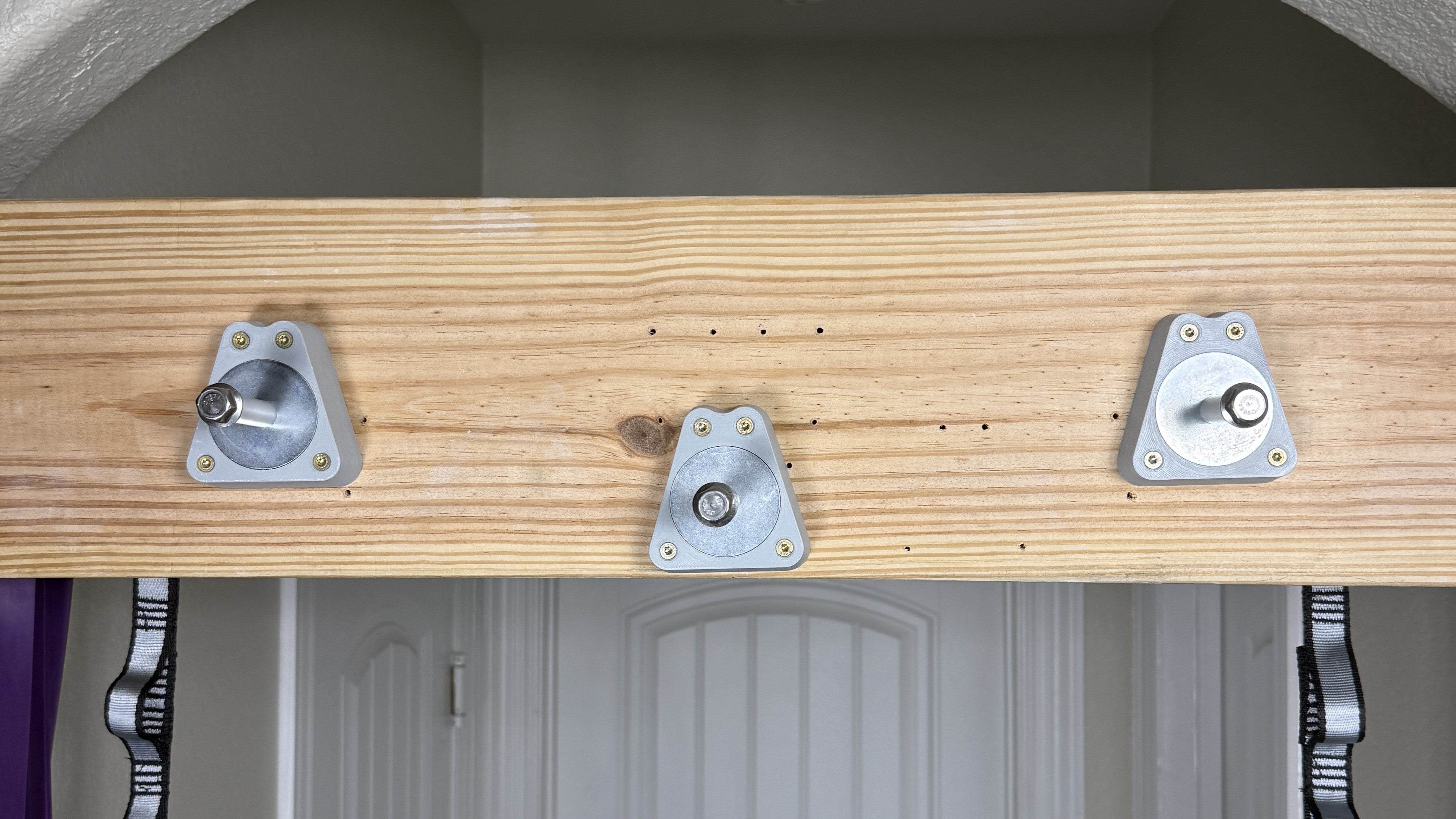

{Gif of the pair of mounts on my 2x8}

Assembling the Solid Mount

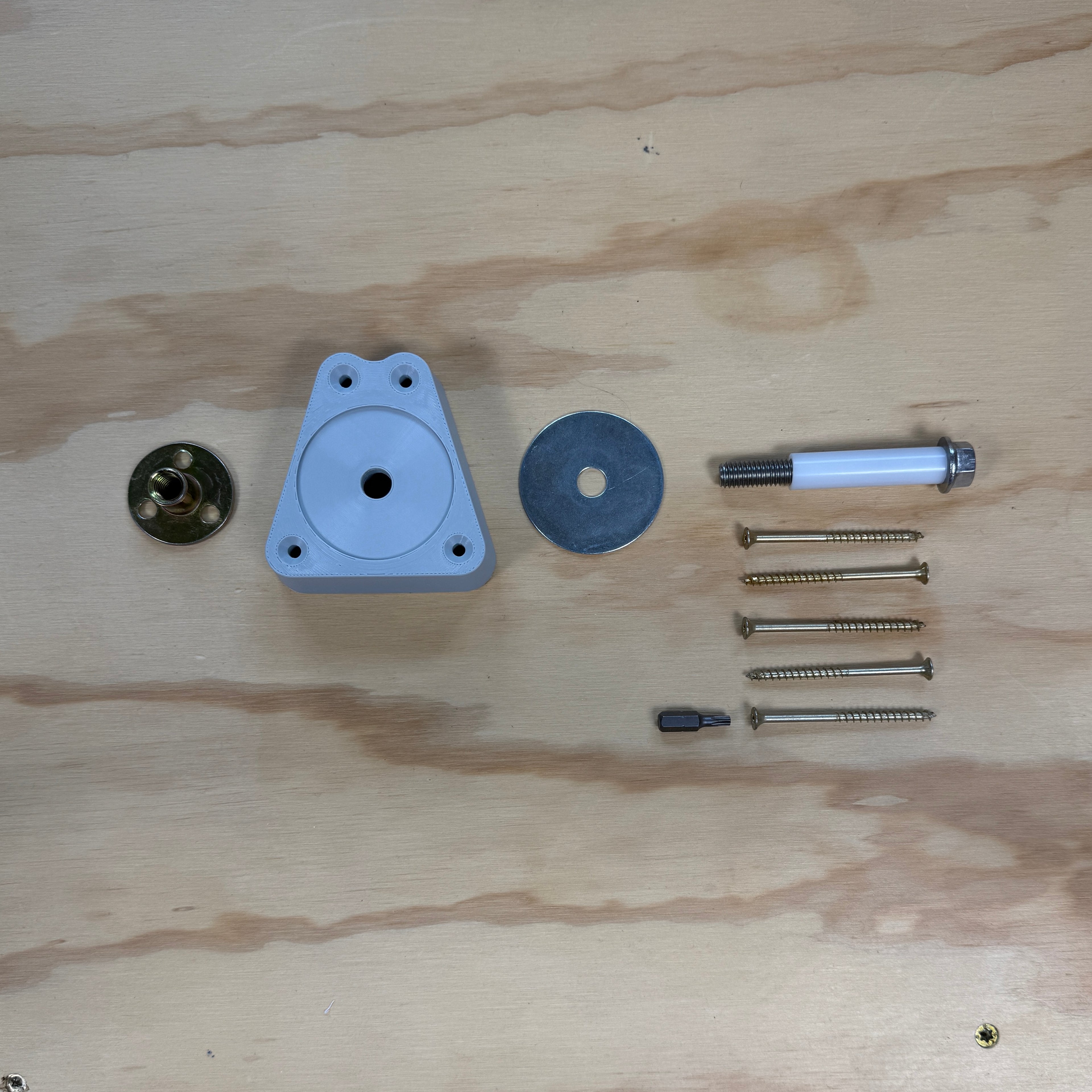

Before assembling the Solid Mount, remove all contents from the mount kit and confirm that all parts are included.

Each Solid Mount kit includes:

  • 1 - Solid Base
  • 1 - T-nut
  • 1 - Washer
  • 1 - Post
  • 5 - 2 1/2" screws
  • 1 - T20 bit

The Solid Base, T-nut, washer, and post are used to assemble the mount. The included screws and T20 bit are used later to attach the assembled mount to an appropriate backing board.

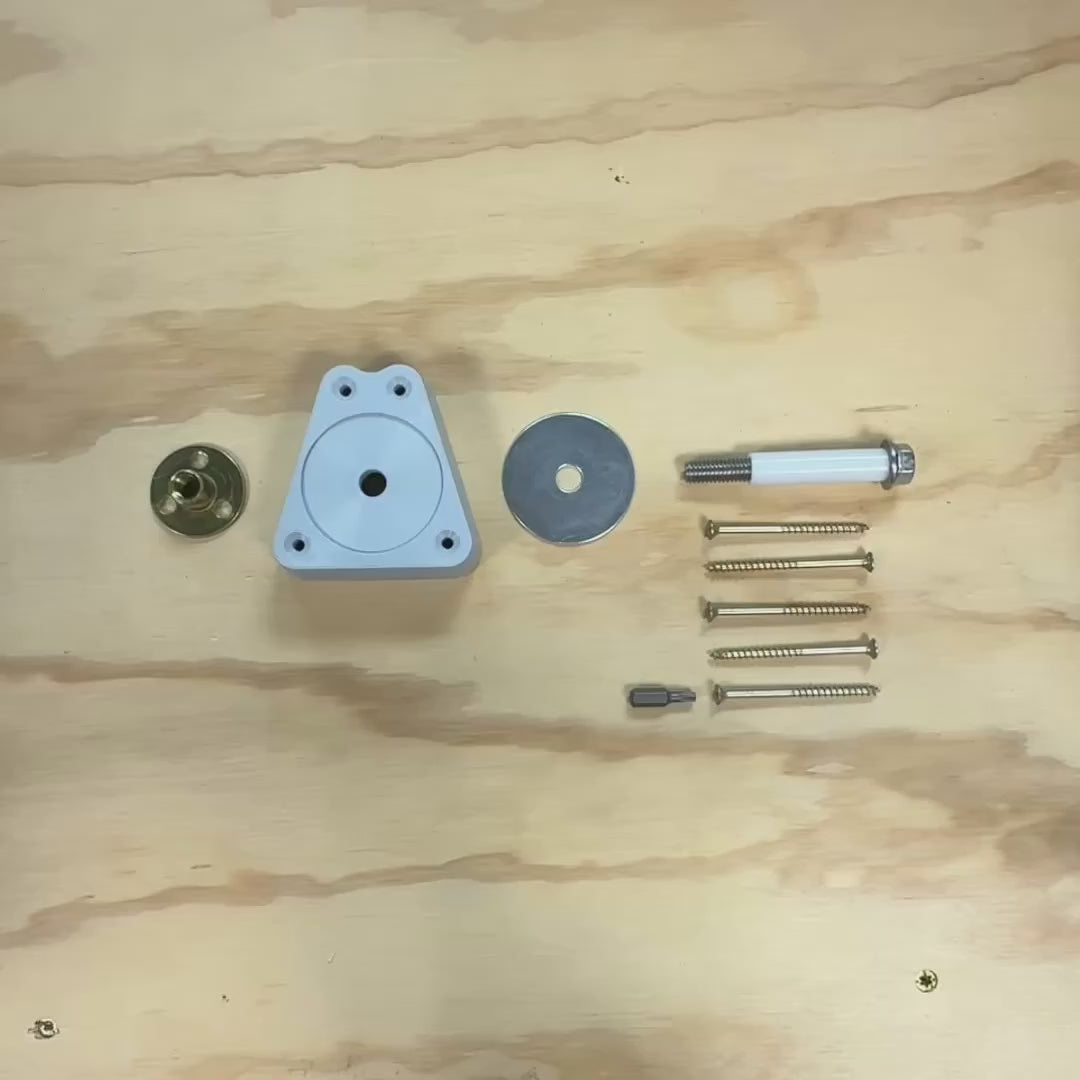

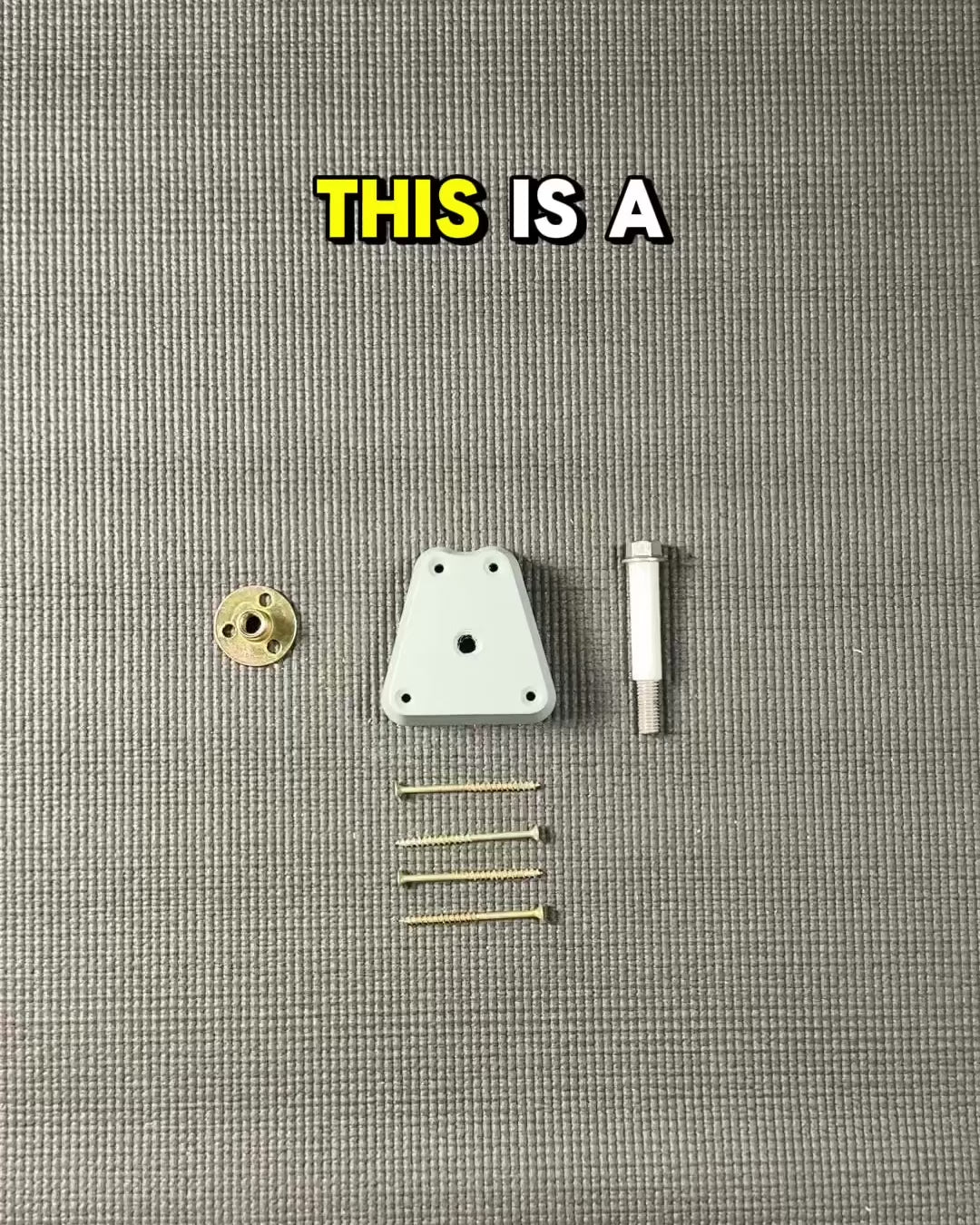

{Show picture of all the contents)

To assemble the Solid Mount, place the T-nut into the back side of the Solid Base. Place the large washer into the recessed area on the front of the Solid Base. Insert the post from the front of the Solid Base, through the washer, and thread it into the T-nut.

{gif of placing the parts into the base)

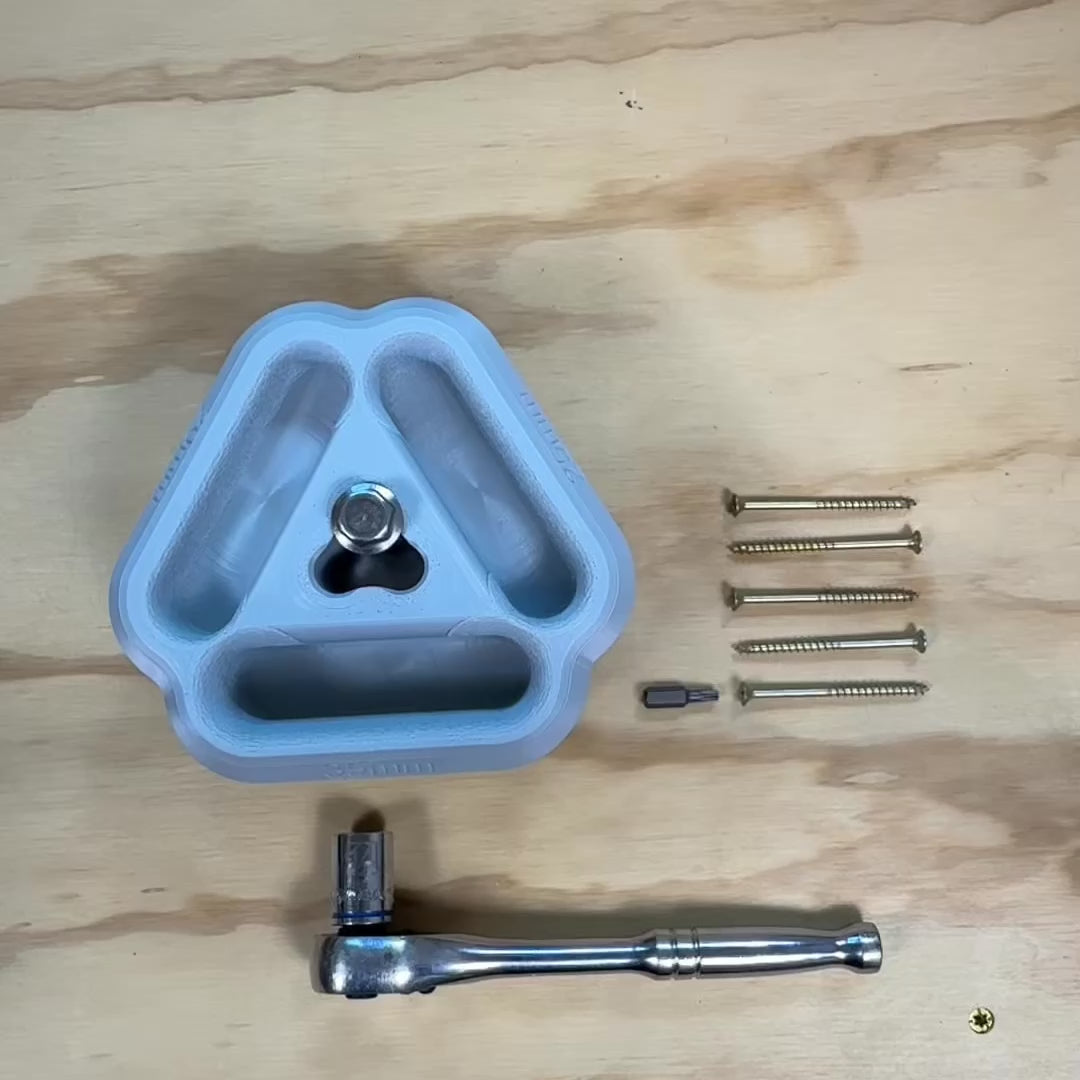

Place a Beta Bloc onto the Solid Mount to help adjust the fit. You can purchase a Beta Bloc here: (Beta Bloc). A 14mm socket or wrench is required for adjustment and is not included. The spacer is slightly oversized and will compress as you tighten the post.

{image showing the gap with a Beta Bloc on it}

Tighten the post until the Beta Bloc feels secure on the mount. Then loosen the post slightly until the Beta Bloc can move smoothly on and off without binding or wobbling. This adjustment controls the feel and tightness of the Beta Bloc on the Solid Mount.

{Gif showing the gap go away and then backing it off}

The Bloc should feel secure, but it should not be difficult to install, rotate, flip, or remove.

Before installing the Solid Mount on your backing board, confirm that the post is centered, tight, and does not wobble.

Installing the Solid Mount on a Backing Board

Each Solid Mount kit includes five 2 1/2 in screws and one T20 bit. Four screws are used to install the Solid Mount. One extra screw is included.

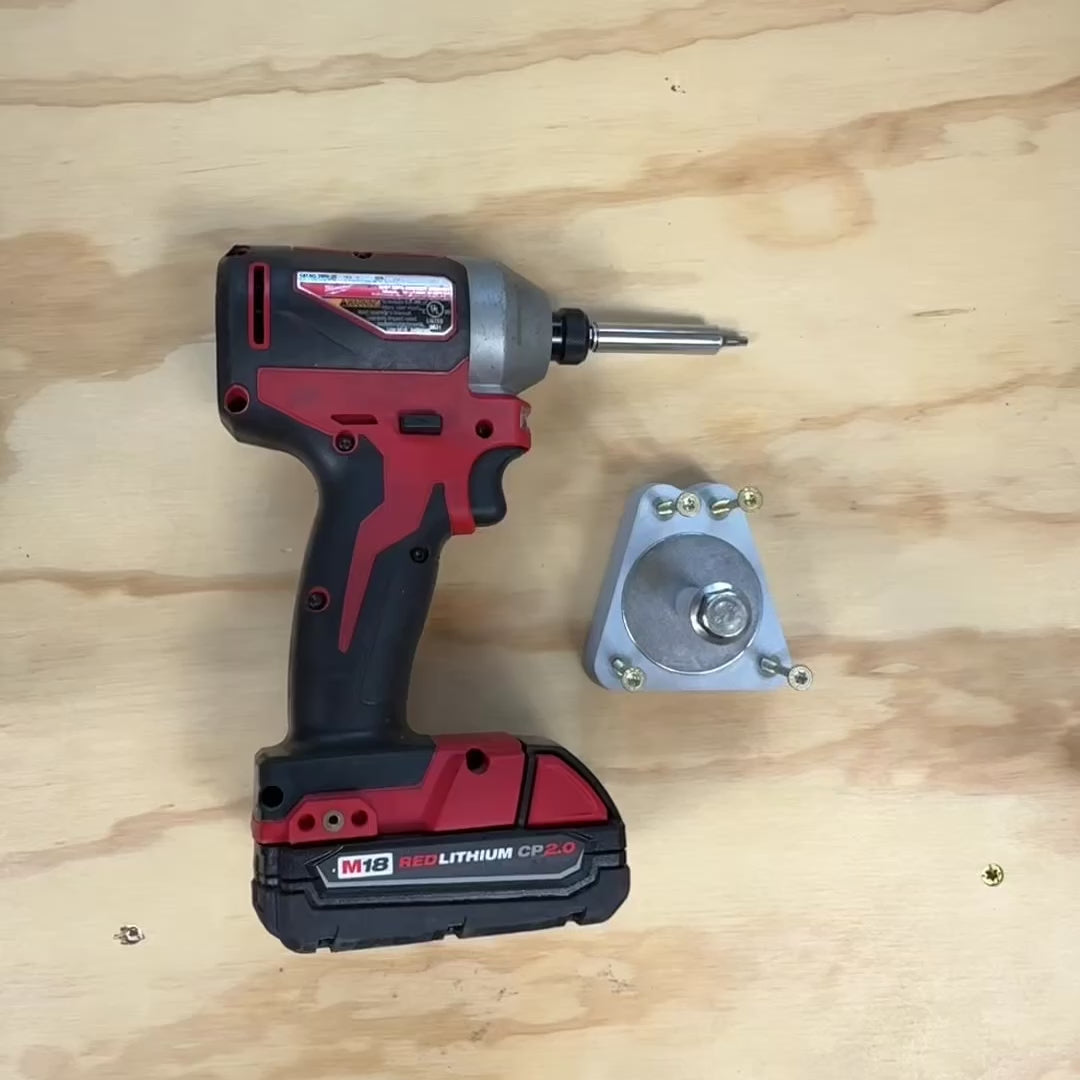

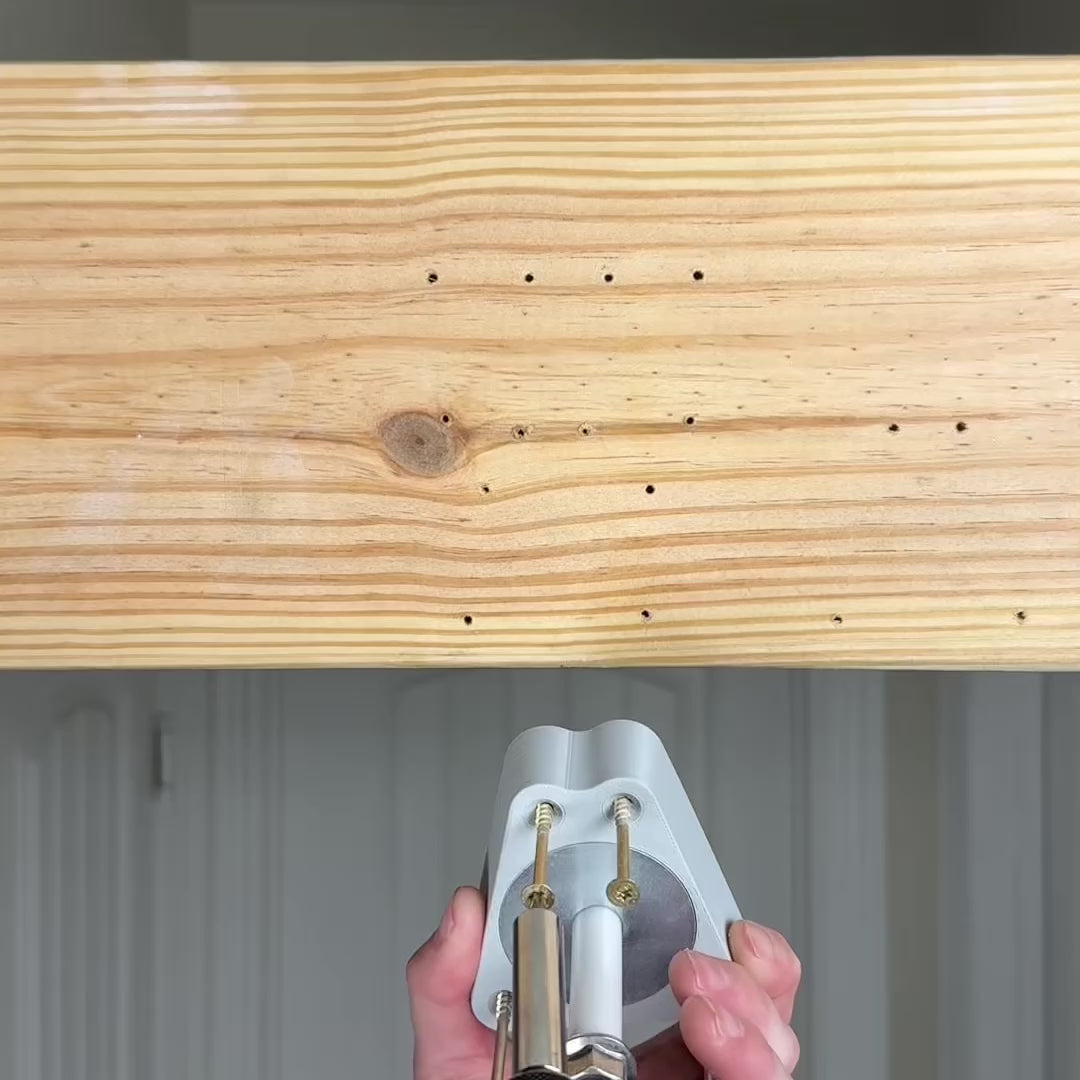

Position the Solid Mount on the backing board where you want it installed. Partially thread the four screws into the mount holes before fully tightening them. This helps keep the screws aligned and makes it easier to level the mount.

{Insert GIF or still image showing the screws partially threaded into the mount holes.}

Start by partially driving one screw into the backing board. Do not fully tighten it yet. Level the Solid Mount, then partially drive the screw on the opposite side to hold the mount in position.

{Insert GIF showing first screw partially installed, mount being leveled, then opposite screw partially installed.}

Once the mount is level and held in place, drive the remaining screws into the backing board. Tighten the screws in a cross pattern, moving from one side to the opposite side, until all four screws are seated evenly.

{Insert GIF or diagram showing cross-pattern tightening order. Example: top left, bottom right, top right, bottom left.}

Do not overtighten. The Solid Mount should sit flat and secure against the backing board, but the screws should not crush the mount, strip the backing board, or deform the screw holes.

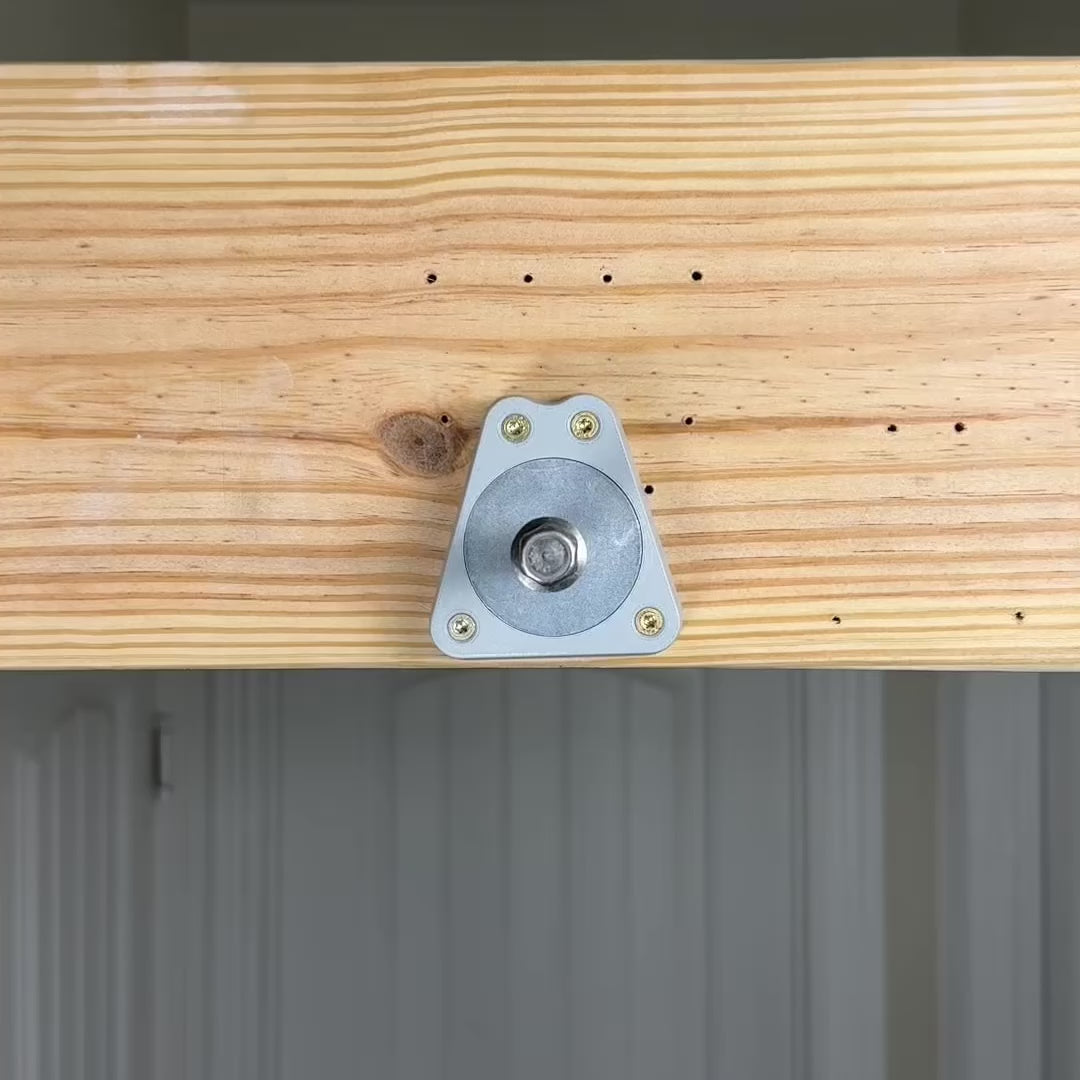

After installation, check that the Solid Mount does not shift, flex, or pull away from the backing board. Confirm that the post is tight and that the mount feels secure before installing a Beta Bloc.

Installing a Beta Bloc on a Solid Mount

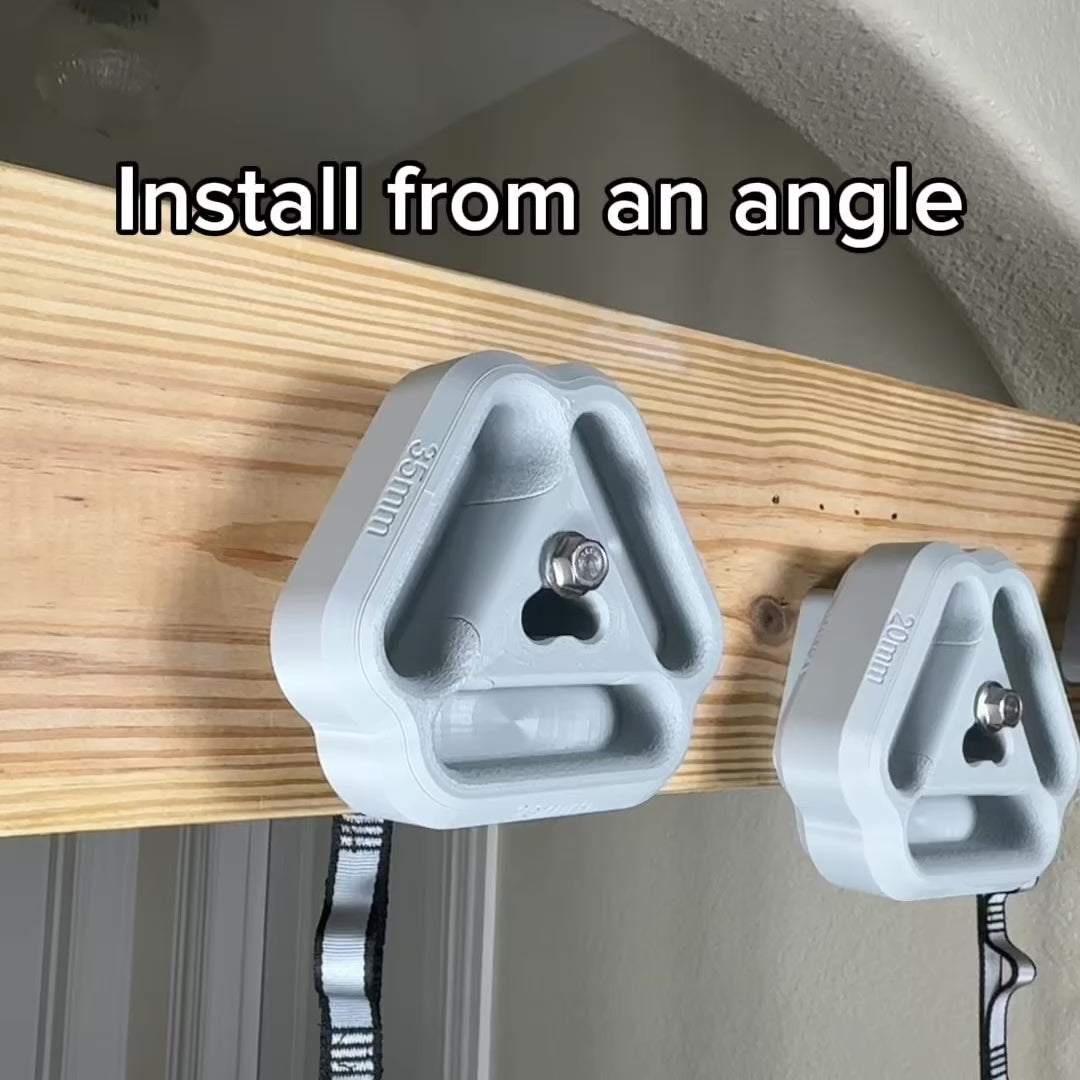

Hold the Bloc at a slight angle when sliding it onto the post. This helps align the post with the clover opening. Once aligned, slide the Bloc all the way down to the base of the mount and pull down gently to fully seat the Bloc.

The Bloc should feel secure on the mount while still being easy to install, remove, rotate, and flip when changing edges. If it feels too tight, too loose, or does not seat cleanly, stop and check the mount adjustment before use. (See Mount Setup)

Before training, confirm the Bloc is fully seated, the Solid Mount is securely attached to the backing board, and the post is tight.

{insert gif of installing the bloc at 4 angles}

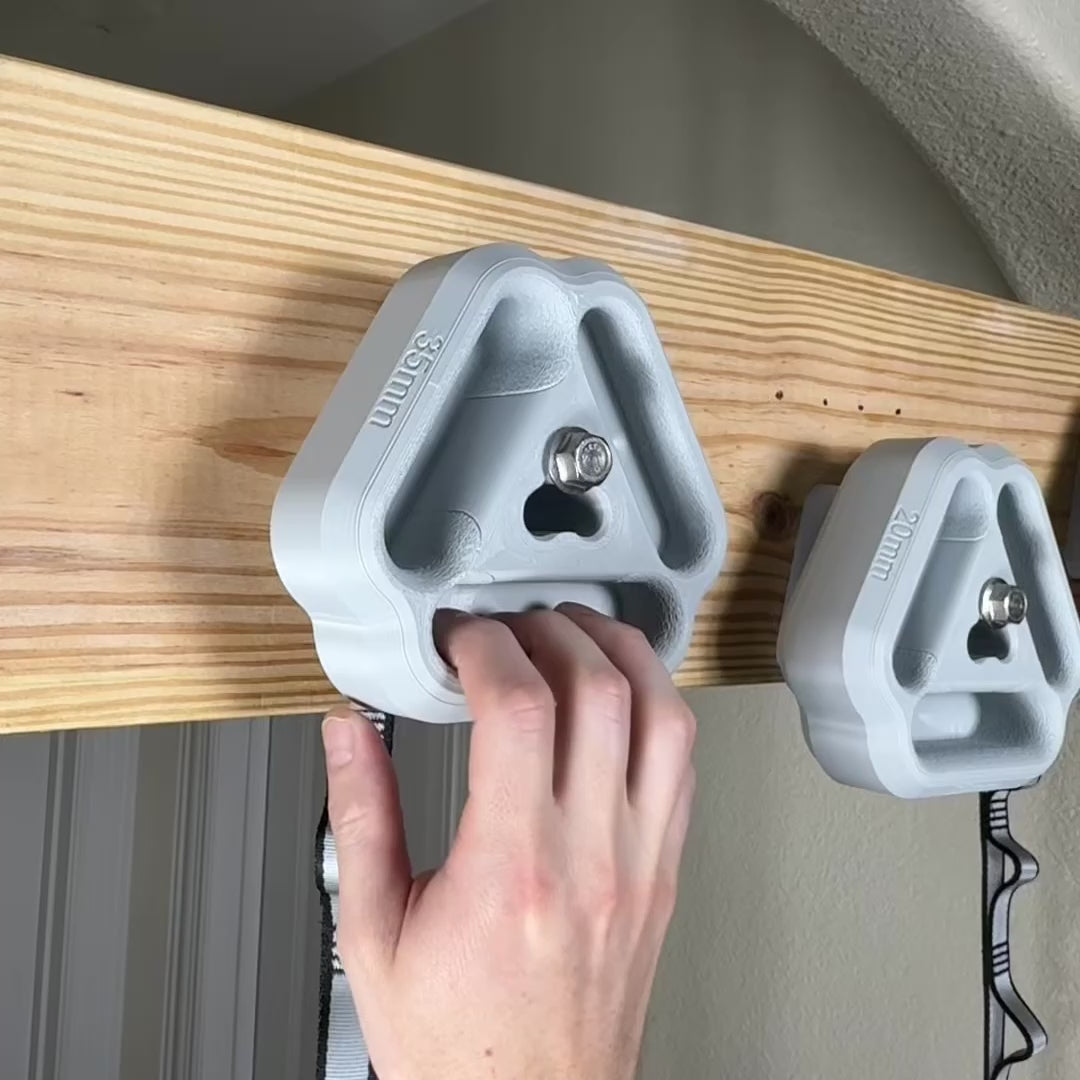

Removing a Beta Bloc from a Solid Mount

Hold the Bloc at on the bottom edge. Pull the Bloc toward you against the post and slide up while applying light pressure.

The Bloc should come off smoothly when it is aligned correctly. Do not twist, pry, or force it off the mount. If the Bloc feels too tight or difficult to remove, stop and check the mount adjustment before use. (See Mount Setup)

{insert gif of Removing the bloc at a slight angle}

Safety and Use Responsibility

Before Each Use

  • Inspect the Beta Bloc, Solid Mount, post, hardware, sling, carabiner, straps, anchor, and backing board before use.
  • Confirm the Beta Bloc is fully seated before training.
  • Confirm the Solid Mount is securely attached and the post is tight.
  • Do not use cracked, loose, damaged, worn, deformed, or unstable equipment.
  • Do not shock load the Beta Bloc System.

Important Warnings

Beta Blocs are climbing training tools only. They are not climbing protection, fall protection, personal protective equipment, or life-safety equipment.

Do not fall onto, jump onto, shock load, or use the Beta Bloc System to catch dynamic falls. Do not use damaged equipment, improperly installed mounts, unsafe anchors, or unstable setups.

Smaller edges and fewer-finger positions can create significantly higher stress on the fingers, hands, elbows, and shoulders. Train within your ability and stop if you feel pain, sharp discomfort, or abnormal strain.

Children should not use the Beta Bloc System without adult supervision.

User Responsibility

Climbing training carries inherent risk. By using the Beta Bloc System, you understand and accept the risks involved with strength training, finger training, hanging, pulling, mounted setups, portable setups, and third-party accessories.

You are responsible for your setup, installation, mounting location, hardware selection, accessory selection, training intensity, edge selection, finger position, and safe use of the product.

Wall construction, anchor quality, accessory quality, and training conditions vary. The user is responsible for confirming that all mounting surfaces, anchors, hardware, and accessories are appropriate for the intended use before training.
